SMD LED Sports Lights

  • Read More

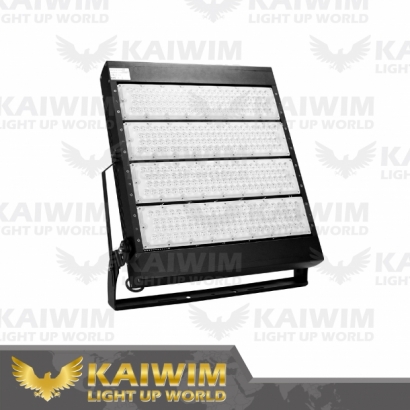

    LED Sports Light-KWRB-SPFL-01

    Product Description
    Product Feature:

    ●Meanwell LED Drivers, AC100V~277V, PF>0.98, THD<15%.
    ●30°/ 60°/ 90°x135° beam angles and excellent uniformity.
    ●Ultra-low luminous decay <10% in 5 years. L70>50,000hrs.
    ●Junction temperature<70°C, good heat dissipation provide longer lifetime.
    ●Light transmittance of PC more than 93%.
    ●Intelligent dimming system. 0-10V, DMX and DALI dimming models are available.
    ●IP67 rating is applicable to outdoor environment.
    ●Working environment in -35℃ to 55℃.
    ●ETL/cETL/DLC/CE/RoHS/SAA/LM79/LM80/IES file is available.
    ●50000 hours lifespan with 5 year warranty.



    Product Specification:




    Watt
    100W
    200W
    300W
    400W
    600W
    800W
    1000W
    1200W


    Total Lumens
    15000LM
    30000LM
    45000LM
    60000LM
    90000LM
    120000LM
    150000LM
    180000LM


    Beam Angle
    30°/60°/90°/120°


    CCT
    3000K-6500K


    Input Voltage
    90-305V, 50-60Hz


    CRI
    >70


    Power Factor
    >0.9


    Operating Temperature
    -35℃~55℃


    IP Rating
    IP67


    Test Standard
    IES/LM79/LM80


    Safety Certification
    ETL / cETL /DLC/ CE / RoHS / FCC /


    Warranty Time
    5  Years






    Product Display:





    Product Details:
    Frame & Optical Technology

    1. Aluminium alloy heatsink with electrophoresis treatment, corrosion resistant powder coated finish.

    2. Stainless steel bracket, can bear the weight of 8 times lamp.

    3. Japan advance calculus optical lens-PC leds.

    Cooling Technology
    1.With 4D heat dissipation technology, with large large cooling area.
    2.Good cooling system can extend the lifespan in harsh envionment.




    Application:

    Applied in large sports field lighting, football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, etc.

    Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
  • Read More

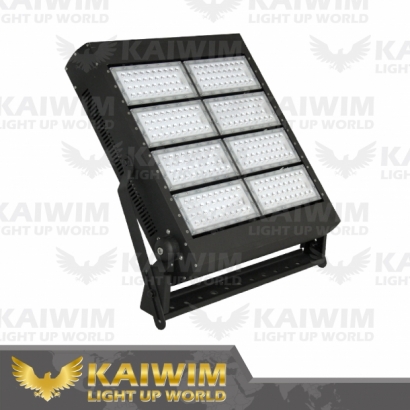

    LED Stadium Lights-KWRS-SPFL-02

    Product Description
    Product Feature:

    ●Using LUMILEDS 5050, high lumen efficient reach to 150lm/w.
    ●Meanwell driver provide superior performance,separate driver box design,better for heat dissipation and maintenance.
    ●Various beam angle 10°,25°,45°,60° are available for optional,more uniform light distribution.
    ●Lamp cap available, avoid the light glare.
    ●Power treatment surface, better protection from fading, rusty and direct sunlight.
    ●Three kinds bracket meet different installation environment.
    ●IP67 rating is applicable to outdoor environment.
    ●Working environment in -35℃ to 55℃.
    ●ETL/cETL/CE/RoHS/LM80/LM79/IES file are available.
    ●More than 50,000 hours lifespan with 5 years warranty.

    Product Specification:




    Watt
    400W
    500W
    600W
    750W
    800W
    1000W
    1200W


    Total Lumens
    60000LM
    75000LM
    90000LM
    112500LM
    120000LM
    150000LM
    180000LM


    Beam Angle
    10°/25°/45°/60°


    CCT
    3000K-6500K


    Input Voltage
    90-305V, 50-60Hz


    CRI
    >70


    Power Factor
    >0.9


    Operating Temperature
    -35℃~55℃


    IP Rating
    IP67


    Test Standard
    IES/LM79/LM80


    Safety Certification
    ETL / cETL / CE / RoHS / FCC /


    Warranty Time
    5  Years






    Product Display:





    Product Details:



    3 Types Of Bracket:





    Application:

    Applied in large sports field lighting, football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, etc.

    Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
  • Read More

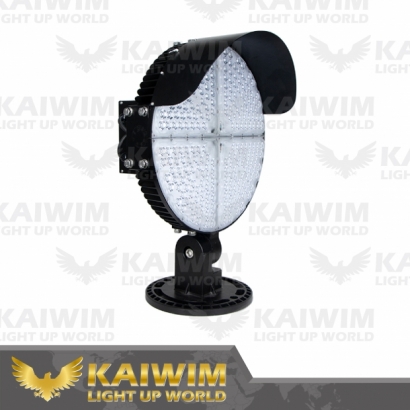

    LED Stadium light-KWRB-SPFL-03

    High performance output, low profile KWRS-SPFL-03 led flood light utilizing Philips Lumileds LED and Meanwell driver, offering 100w~1200w for choice. High lumens can up to 150 lumen per watt, Available in 20°/40°/60°/90° multiple optical lenses for sports venuse and large areas
