Product Feature:
●Meanwell LED Drivers, AC100V~277V, PF>0.98, THD<15%.
●30°/ 60°/ 90°x135° beam angles and excellent uniformity.
●Ultra-low luminous decay <10% in 5 years. L70>50,000hrs.
●Junction temperature<70°C, good heat dissipation provide longer lifetime.
●Light transmittance of PC more than 93%.
●Intelligent dimming system. 0-10V, DMX and DALI dimming models are available.
●IP67 rating is applicable to outdoor environment.
●Working environment in -35℃ to 55℃.
●ETL/cETL/DLC/CE/RoHS/SAA/LM79/LM80/IES file is available.
●50000 hours lifespan with 5 year warranty.
Product Specification:
| Watt | 100W | 200W | 300W | 400W | 600W | 800W | 1000W | 1200W |
| Total Lumens | 15000LM | 30000LM | 45000LM | 60000LM | 90000LM | 120000LM | 150000LM | 180000LM |
| Beam Angle | 30°/60°/90°/120° | |||||||
| CCT | 3000K-6500K | |||||||
| Input Voltage | 90-305V, 50-60Hz | |||||||
| CRI | >70 | |||||||
| Power Factor | >0.9 | |||||||
| Operating Temperature | -35℃~55℃ | |||||||
| IP Rating | IP67 | |||||||
| Test Standard | IES/LM79/LM80 | |||||||
| Safety Certification | ETL / cETL /DLC/ CE / RoHS / FCC / | |||||||
| Warranty Time | 5 Years | |||||||

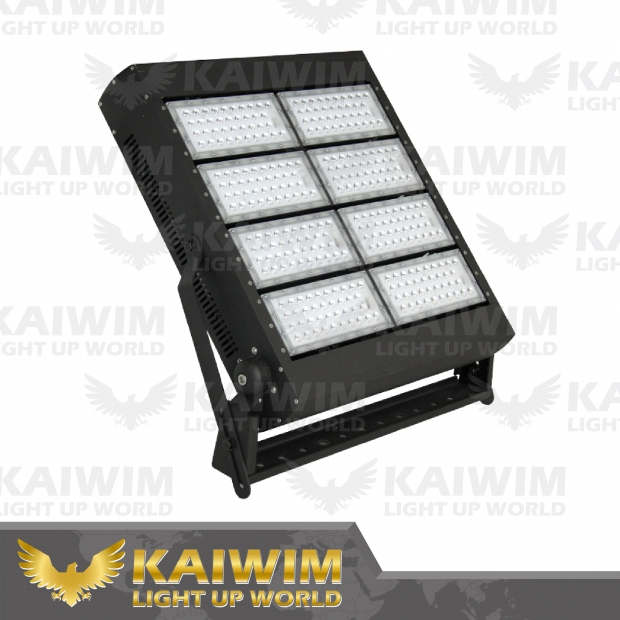

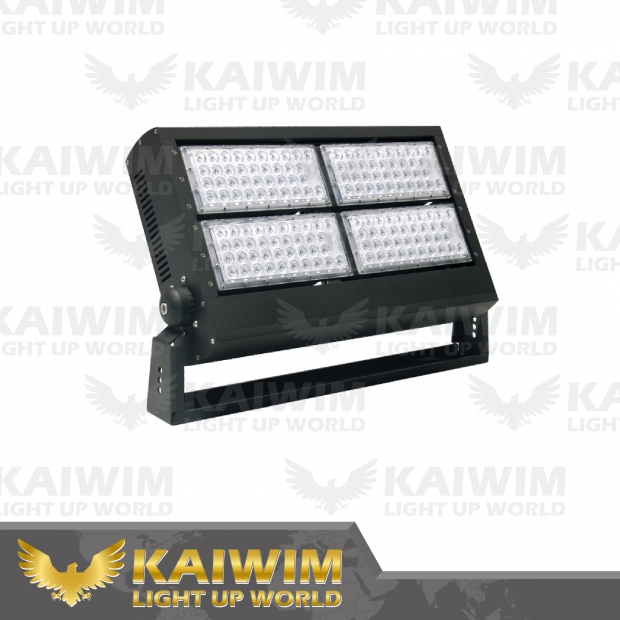

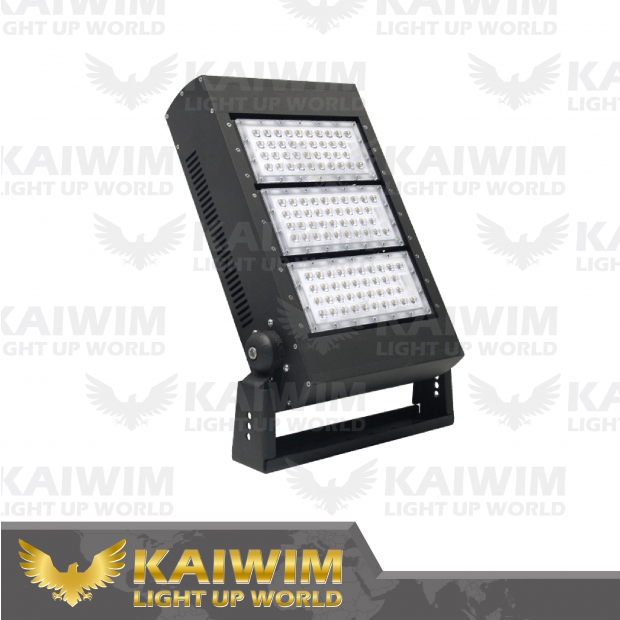

Product Display:
Product Details:
Frame & Optical Technology1. Aluminium alloy heatsink with electrophoresis treatment, corrosion resistant powder coated finish.
2. Stainless steel bracket, can bear the weight of 8 times lamp.
3. Japan advance calculus optical lens-PC leds.

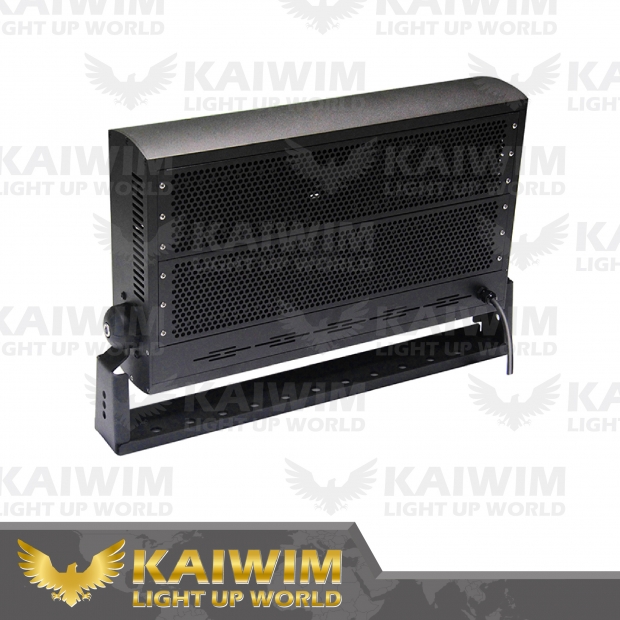

1.With 4D heat dissipation technology, with large large cooling area.
2.Good cooling system can extend the lifespan in harsh envionment.
Application:
Applied in large sports field lighting, football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, etc.
Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
